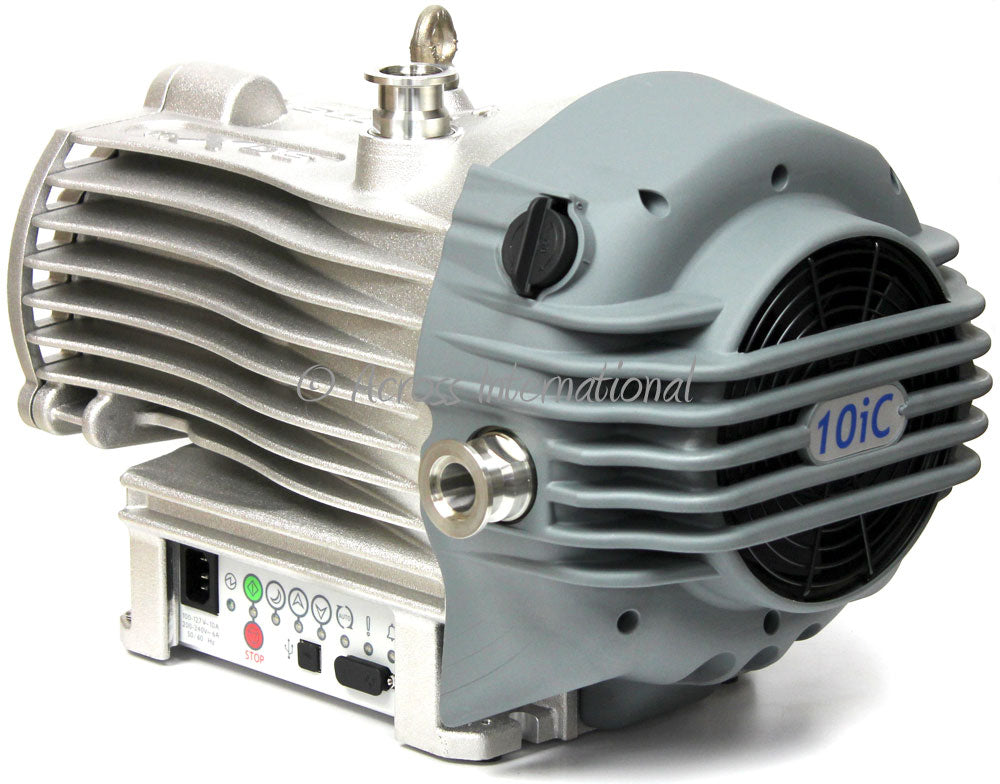

Edwards 7.5CFM Scroll Pump

Best paired with the Labconco 8L Freeze Dryer

The new nXDS-C pump is a modified version of the nXDS that is suitable for use in vapour handling processes and may be used for some pumping applications involving corrosive substances. The nXDS-C variants have Chemraz internal valves and stainless steel fittings for extra protection from the pumped media. Together with exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features, the nXDS-C dry scroll pump is the best-performing pump in its class.

The nXDS10iC is up to 20x quieter than other pumps. Its intelligent control functions and up to five-year service interval offer low cost of ownership, making it the small dry pump of choice for today's most advanced technologies.

Overview

The Edwards nXDS10i and nXDS10iC pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDS10i is the next generation of completely oil-free, dry scroll pumps and replaces the XDS10. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for the pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto-sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.
